Dual Camera Feed
AI-Driven single touch operations
Features AI-driven automation for simplified, one-click control and real-time remote operation, with full manual control always available.
Revolutionizing pipe repairing
Sewerbot
Sewerbot invented by Polinvent is a sewer rehabilitation machine that completely eliminates all existing and potential damages. The result is a completely new and dense tube in the old pipe with significantly better mechanical properties. And all this without any dirt and noise.
Dual Camera FeedVapor coolingUploads everything to CloudMaximum range: 131 ft
Let's be honest. It's brilliant.
Over 1200 W adjustable power

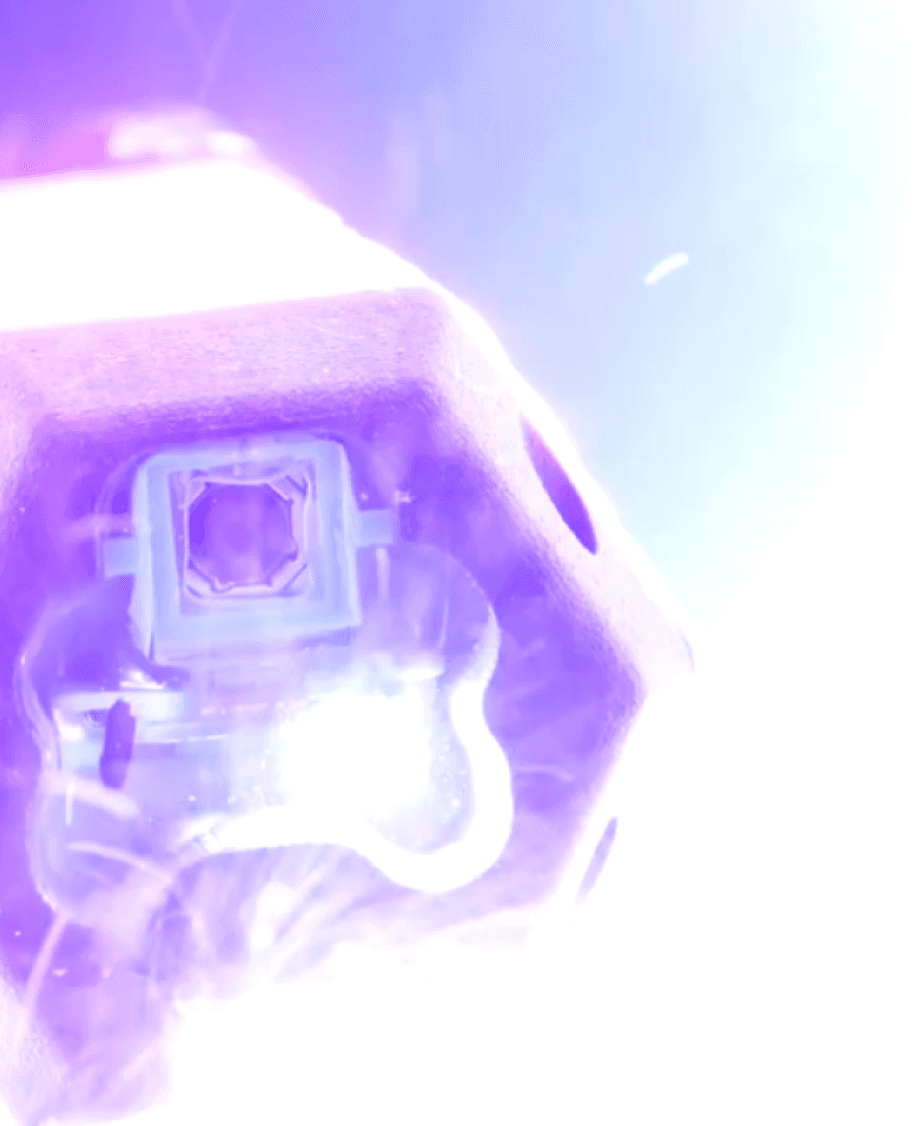

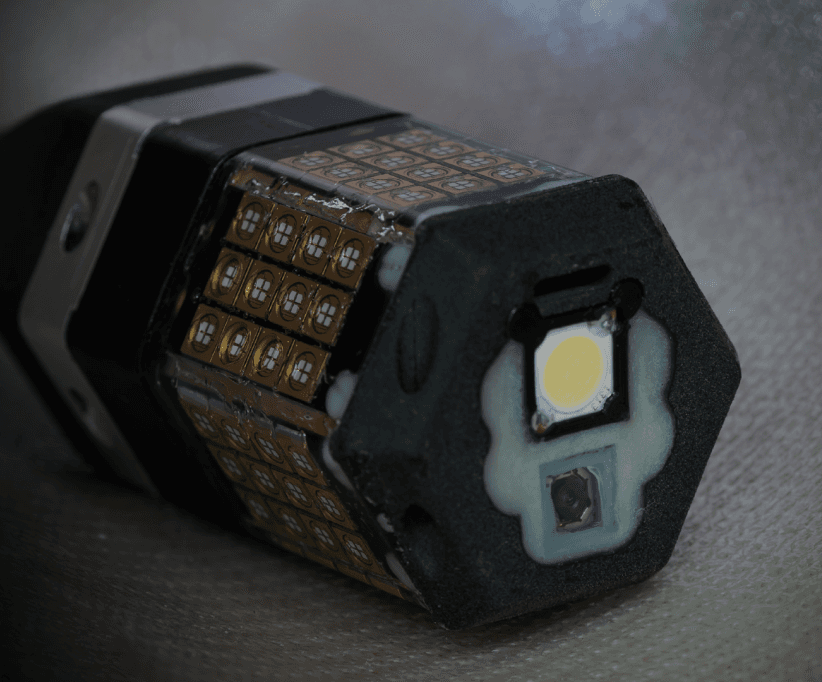

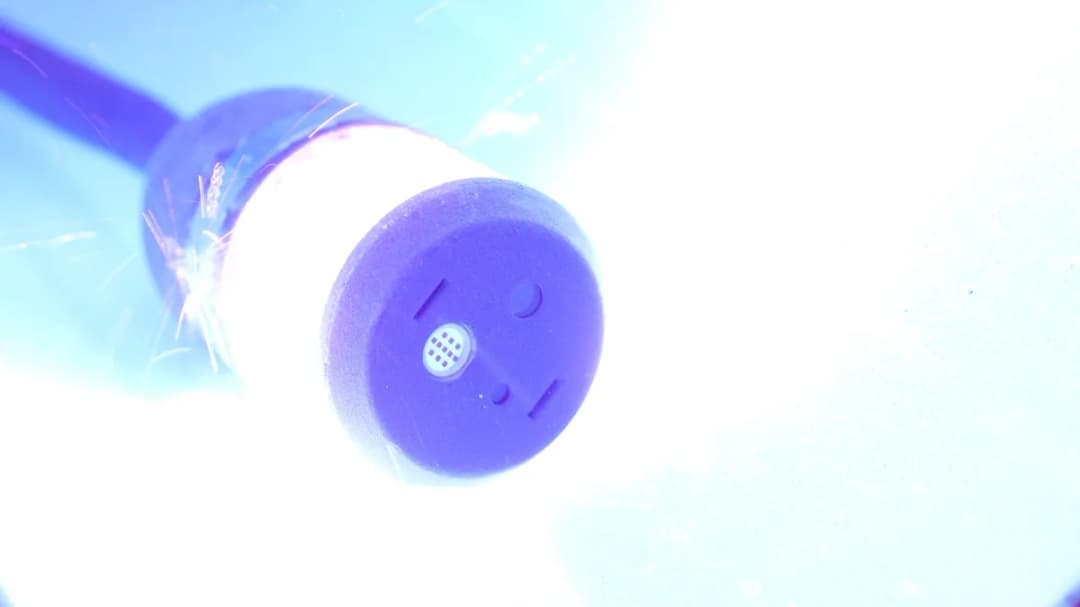

Extremely powerful UV Head (1200+W)
Introducing our advanced UV head with over 1200 watts of adjustable power. Operating at a 395 nm wavelength, it is ideal for CIPP technologies.
Water consumption: 0.13 gal/min
Vapor cooling
The UV head's vapor cooling technology increases efficiency and reliability, particularly in harsh environments. Requiring less than 0.5 l/min waterflow, the efficient vapor cooling allows for a smaller, quieter air compressor, enhancing the system's performance and reducing noise.
Uploads everything to Cloud
Quality Control
Operational parameters and camera images are recorded for quality assurance, with all data uploaded to the cloud.

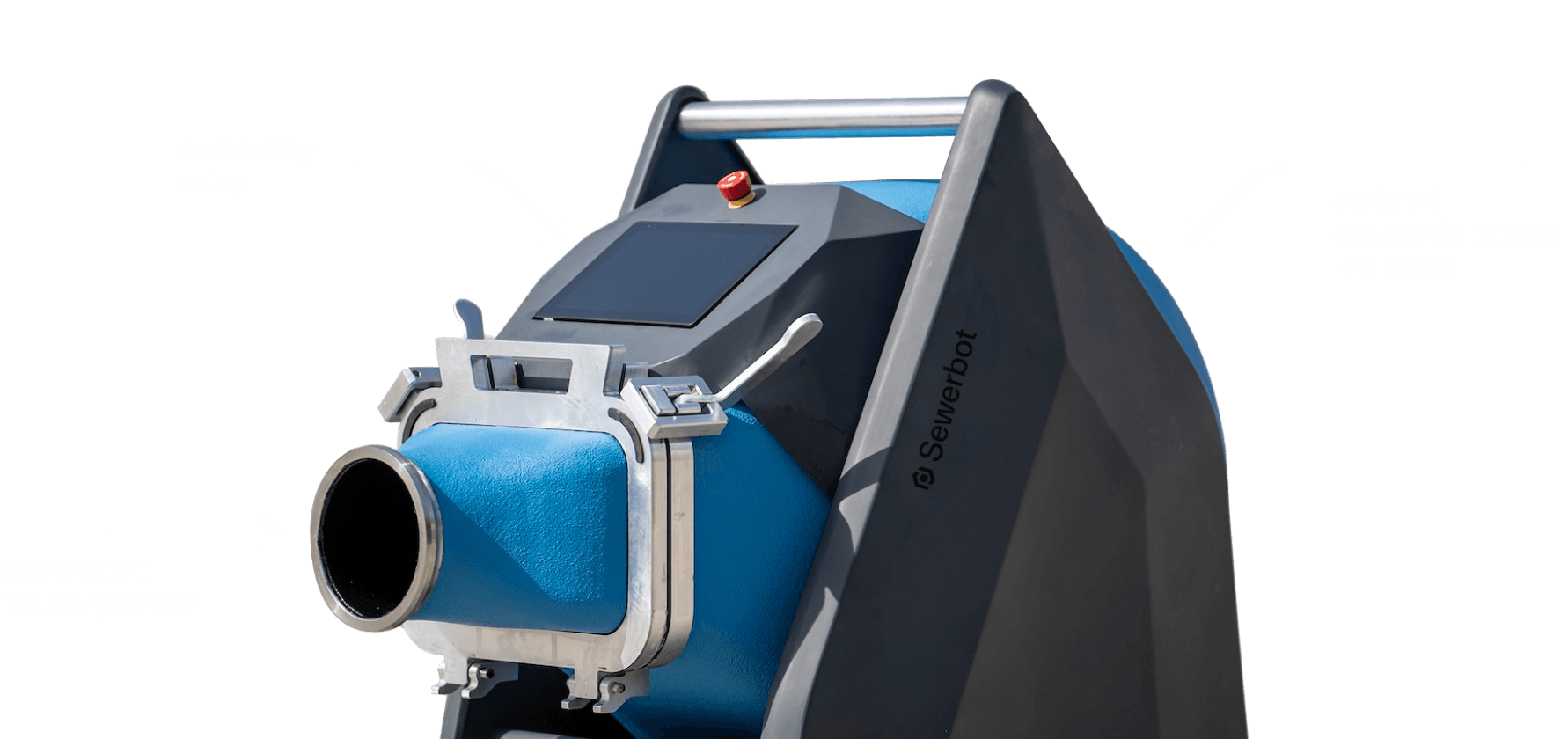

Overview

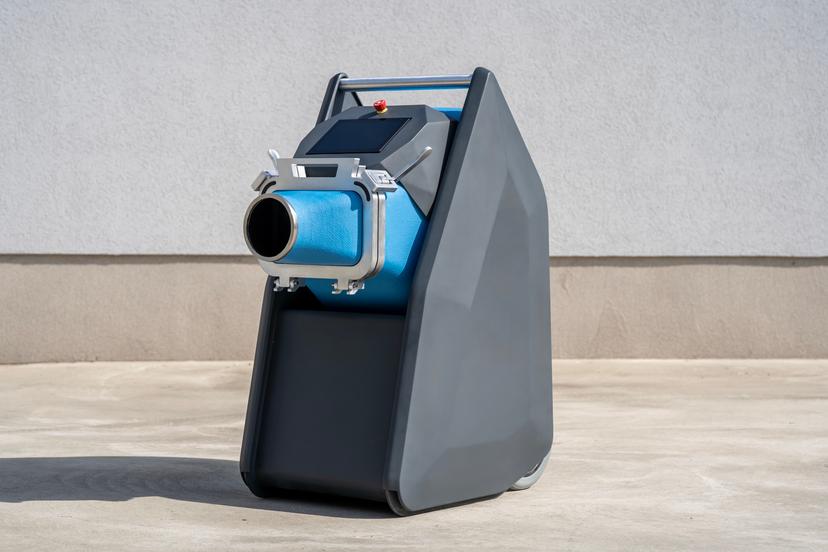

Sewerbot invented by Polinvent is a sewer rehabilitation machine that completely eliminates all existing and potential damages. The result is a completely new and dense tube in the old pipe with significantly better mechanical properties. And all this without any dirt and noise.
Let's be honest. It's brilliant.
Dual Camera Feed
AI-Driven single touch operations
Features AI-driven automation for simplified, one-click control and real-time remote operation, with full manual control always available.
Over 1200 W adjustable power
Extremely powerful UV Head (1200+W)
Introducing our advanced UV head with over 1200 watts of adjustable power. Operating at a 395 nm wavelength, it is ideal for CIPP technologies.
Water consumption: 0.13 gal/min
Vapor cooling
The UV head's vapor cooling technology increases efficiency and reliability, particularly in harsh environments. Requiring less than 0.5 l/min waterflow, the efficient vapor cooling allows for a smaller, quieter air compressor, enhancing the system's performance and reducing noise.
Uploads everything to Cloud
Quality Control
Operational parameters and camera images are recorded for quality assurance, with all data uploaded to the cloud.
Features

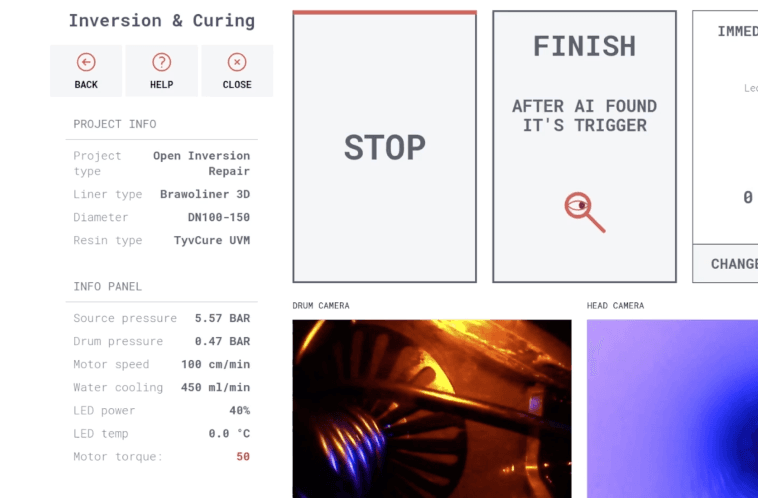

10.1 Touchscreen display
A software for flawless operations

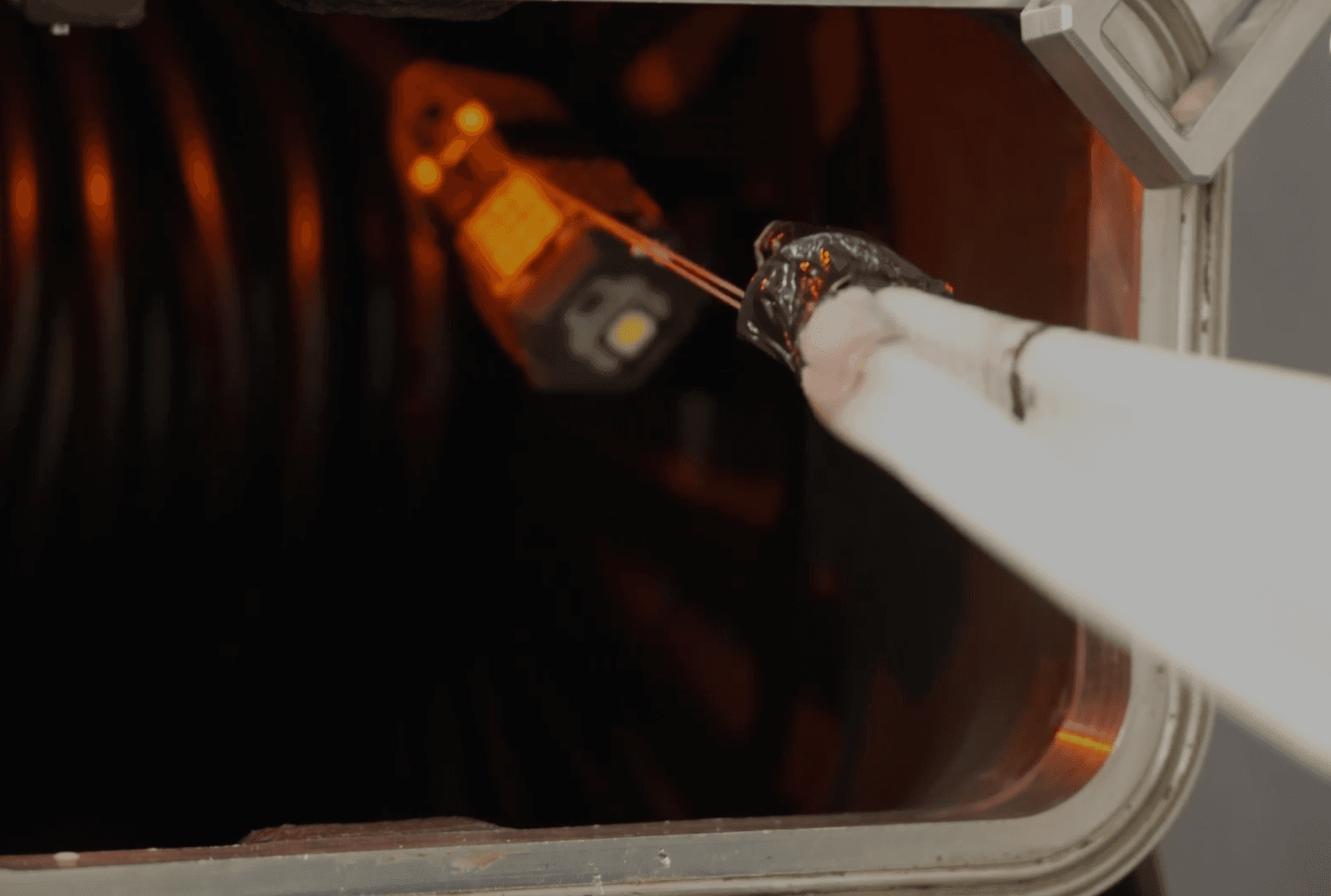

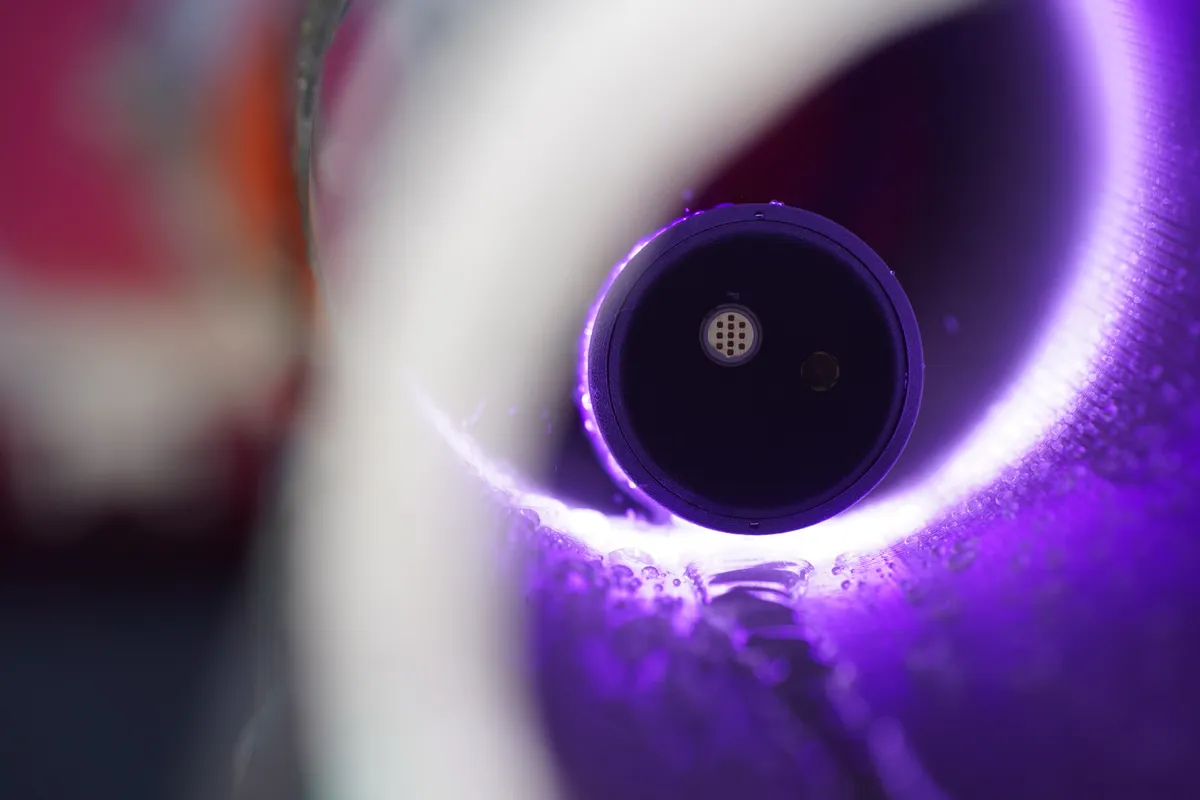

For real-time procedure visualisation Sewerbot includes two cameras.
Maximum range: 131 ft

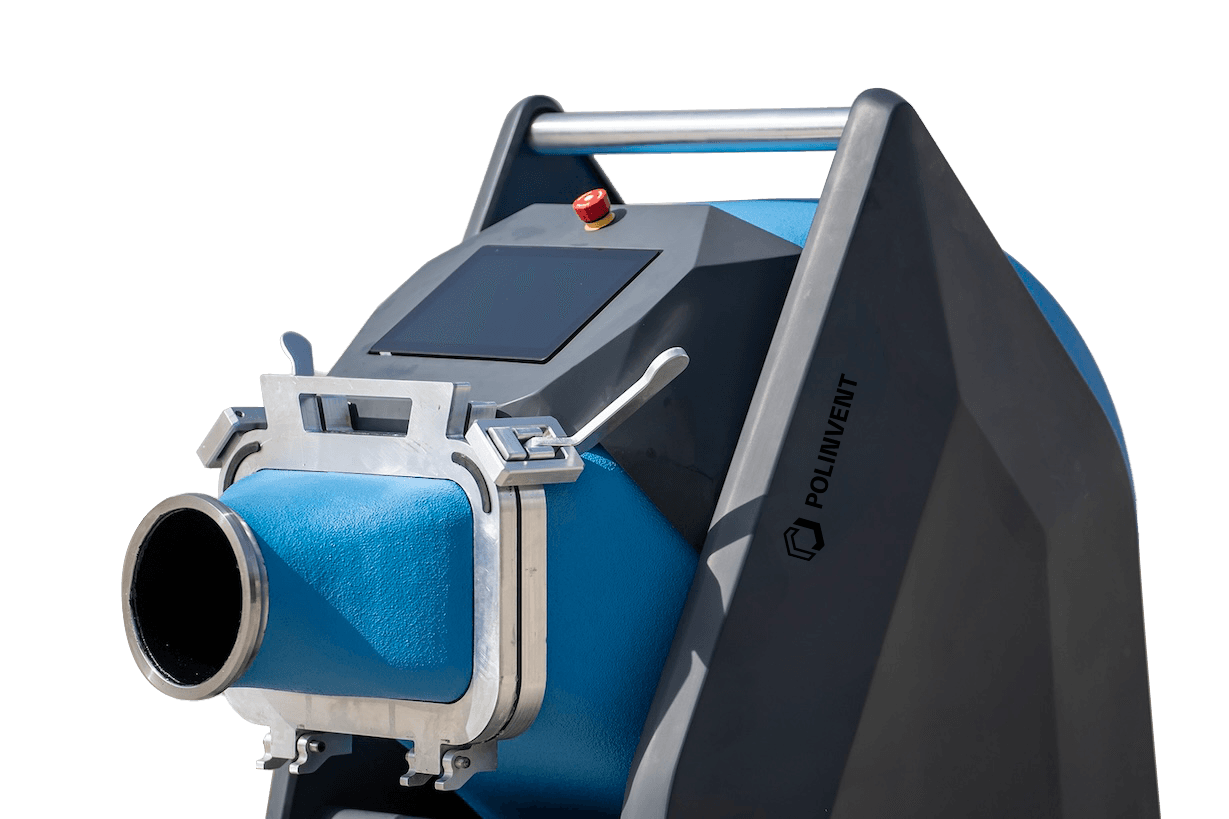

Fully integrated light composite drum
Combines lightweight design with durability, ready to operate with just a compressor and electrical power.
AC input: 230V & 110V
Simplified site operations
Simplified operation with a standard 230V/110V compressor, eliminating the need for an air chiller and making on-site handling much easier.
Uploads everything to Cloud
Smart Investment
Offers long-term efficiency with over-the-air updates that enhance functionality and superior connectivity.
Over 1200 W adjustable powerDual Camera Feed10.1 Touchscreen displayWifiBluetoothUploads everything to Cloud
How it works?
This process leverages advanced technology to repair underground pipes without the need for disruptive excavation, ensuring a faster and more cost-effective solution for sewer rehabilitation.
Open the existing manhole or access point to begin the process without excavation.

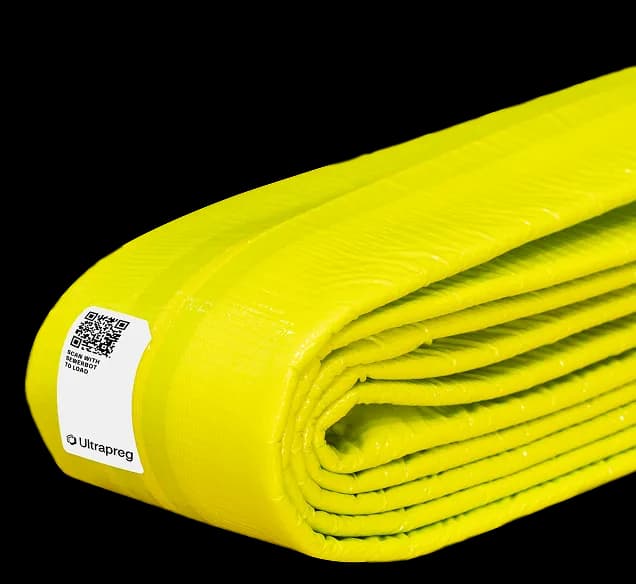

Prepare the Ultrapreg liner, scanning the QR code for fluid data integration.

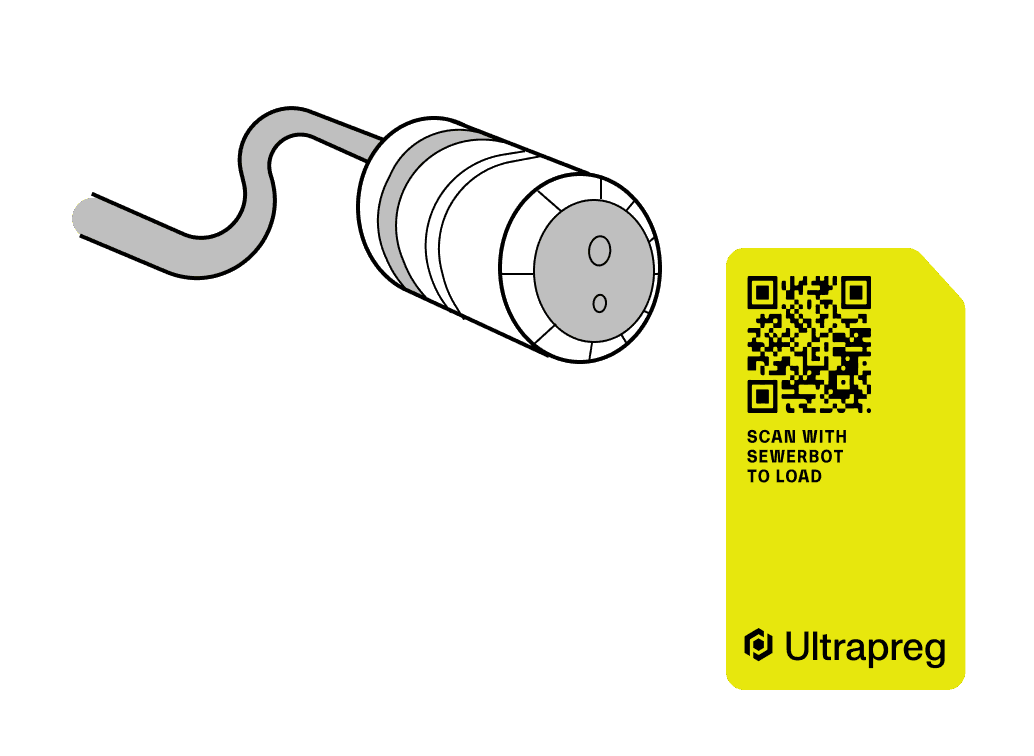

Scan the QR Code: Use a QR scanner to read the code on Ultrapreg. This automatically uploads all necessary data to Sewerbot, ensuring accurate application and documentation. So it makes your work much more easier!
Invert the prepreg: Load Ultrapreg into Sewerbot and push the start button. Sewerbot does the rest of it automaticly.
The machine is designed to handle a variety of liner sizes and lengths, making it versatile for different pipe diameters and rehabilitation requirements.
The integrated drum and UV head are engineered for compact and efficient operation. The AI-driven automation system simplifies the setup, reducing manual intervention and potential errors.

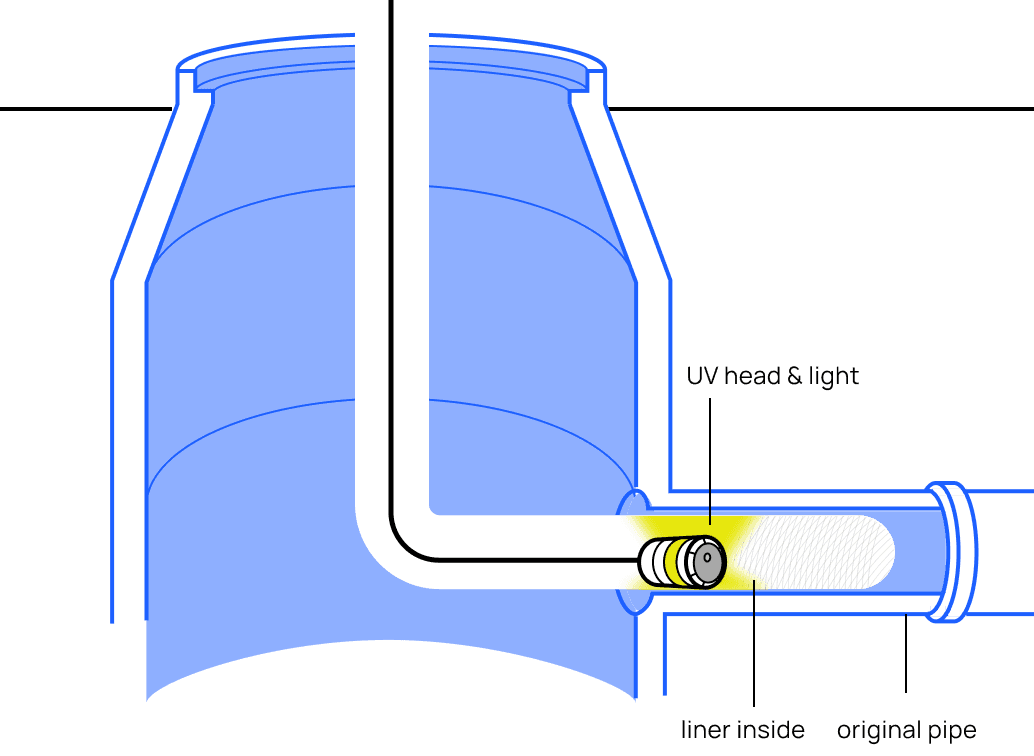

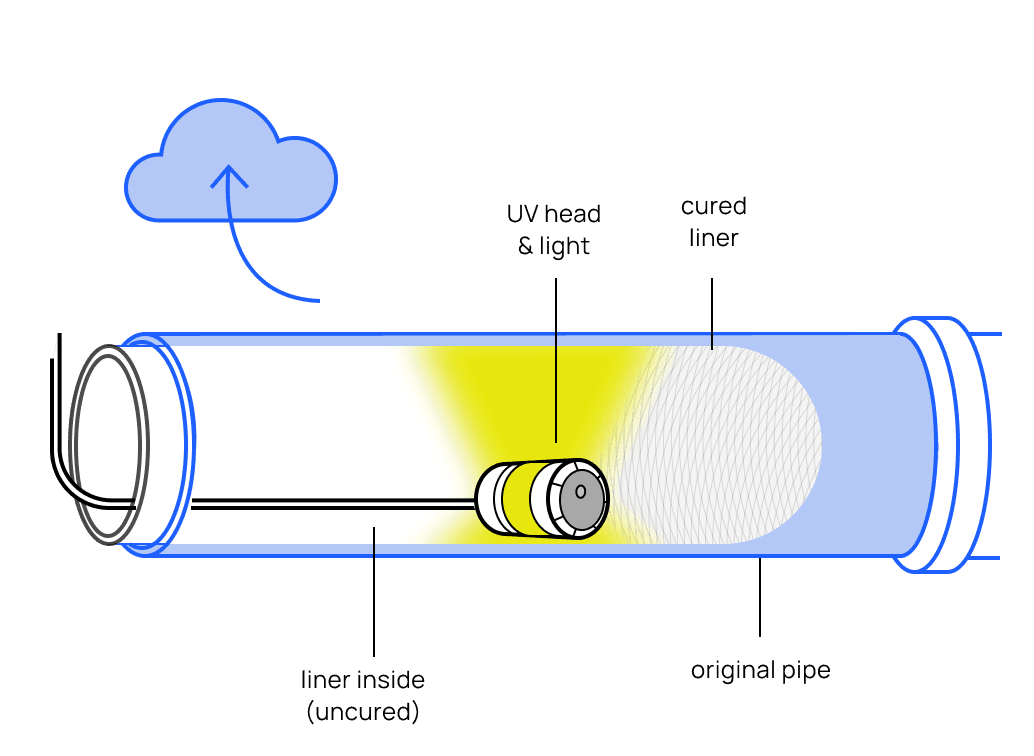

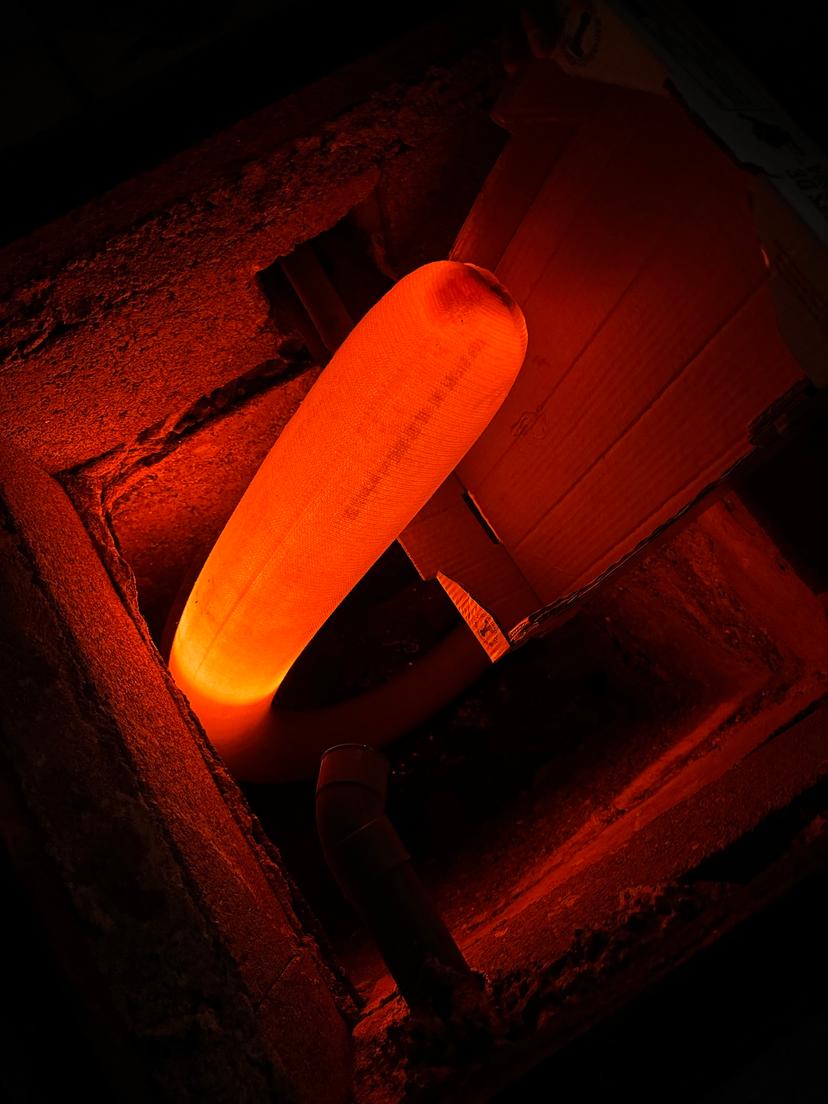

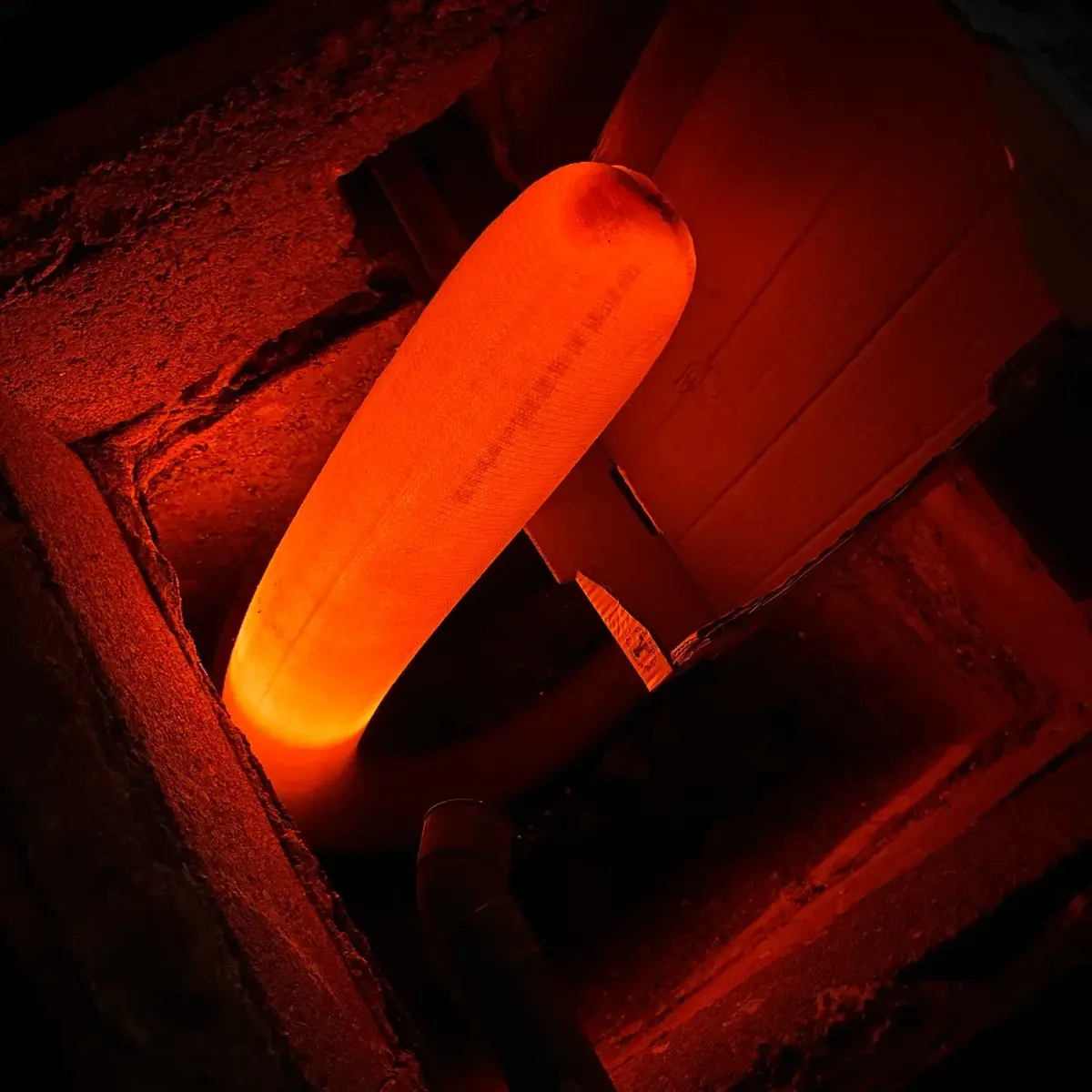

UV Light Curing: Sewerbot inverts the Ultrapreg liner into the pipe and positions it accurately. The powerful UV head, with over 1200 watts of adjustable power, then cures the resin. The UV curing ensures a quick and thorough hardening of the resin, forming a durable new pipe within the old one.
Real-Time Monitoring: The system includes cameras and sensors to monitor the curing process. This data is recorded and uploaded to the cloud for quality control and future reference.
Final Inspection: After curing, conduct a final inspection using Sewerbot's integrated camera system. This ensures the new liner is properly installed and fully cured.
Data Upload: All operational data and images are automatically uploaded to the cloud, providing a comprehensive record of the rehabilitation process.

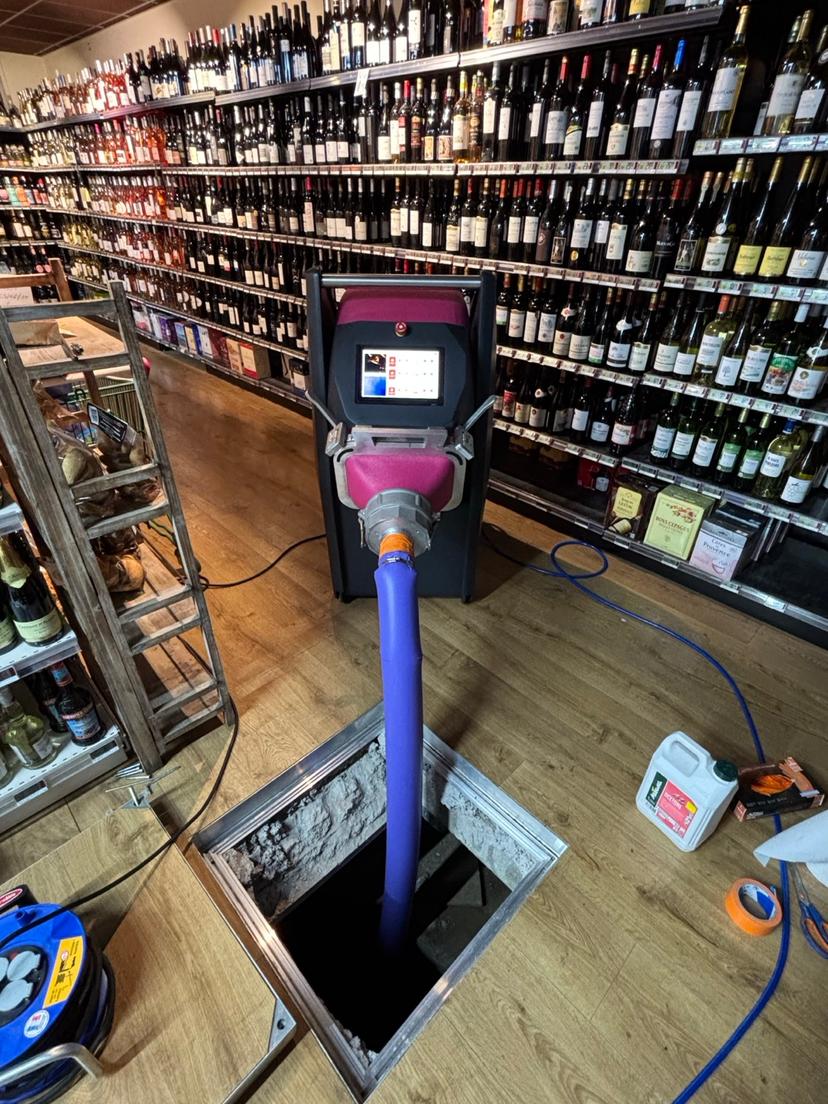

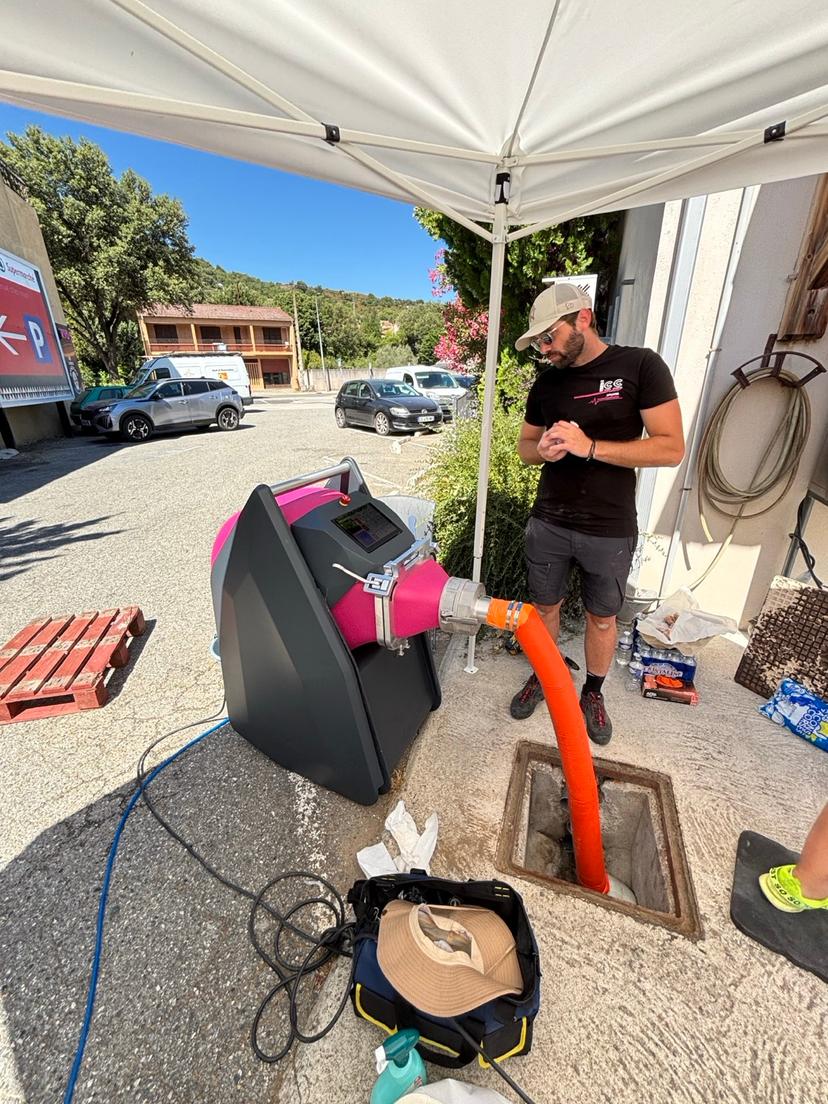

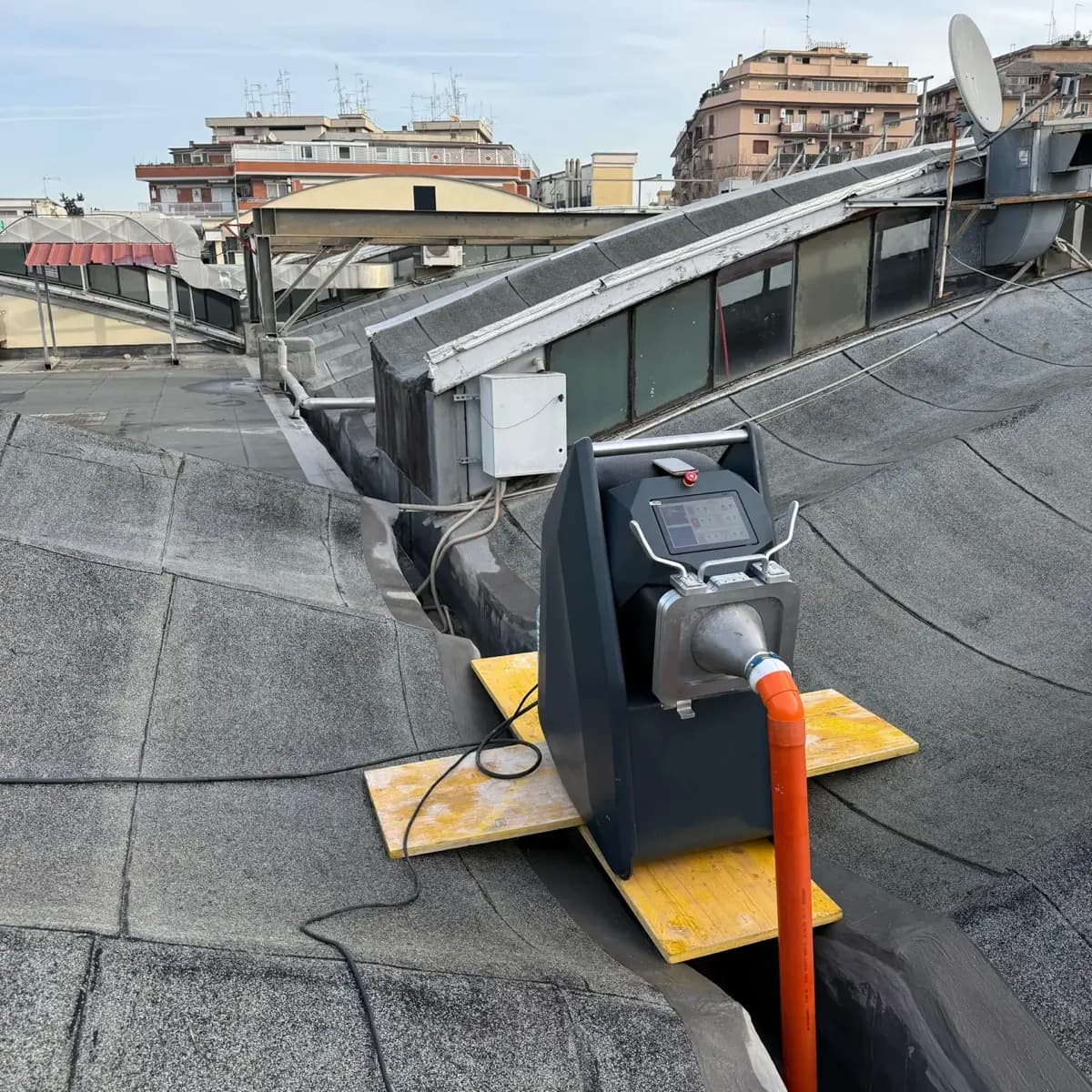

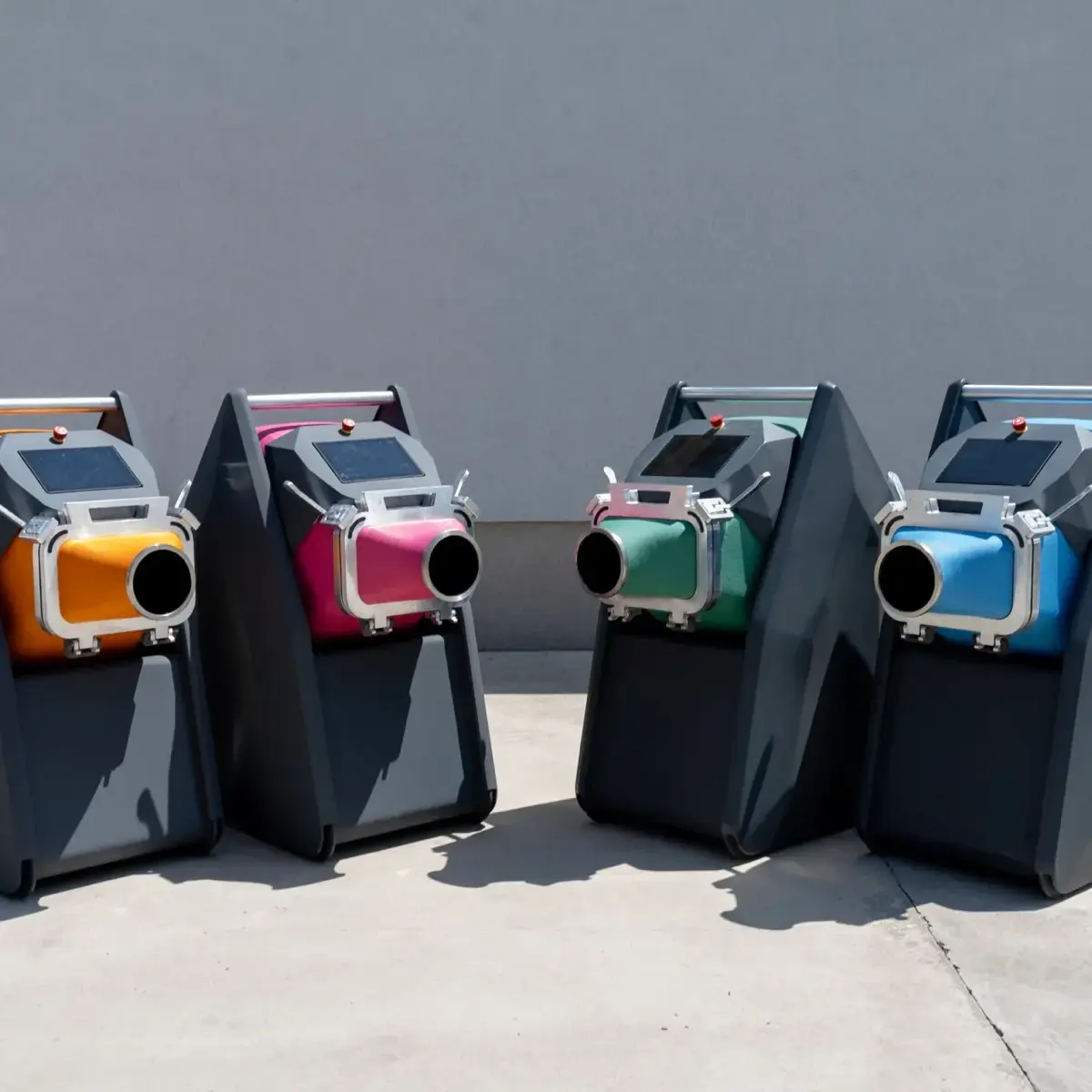

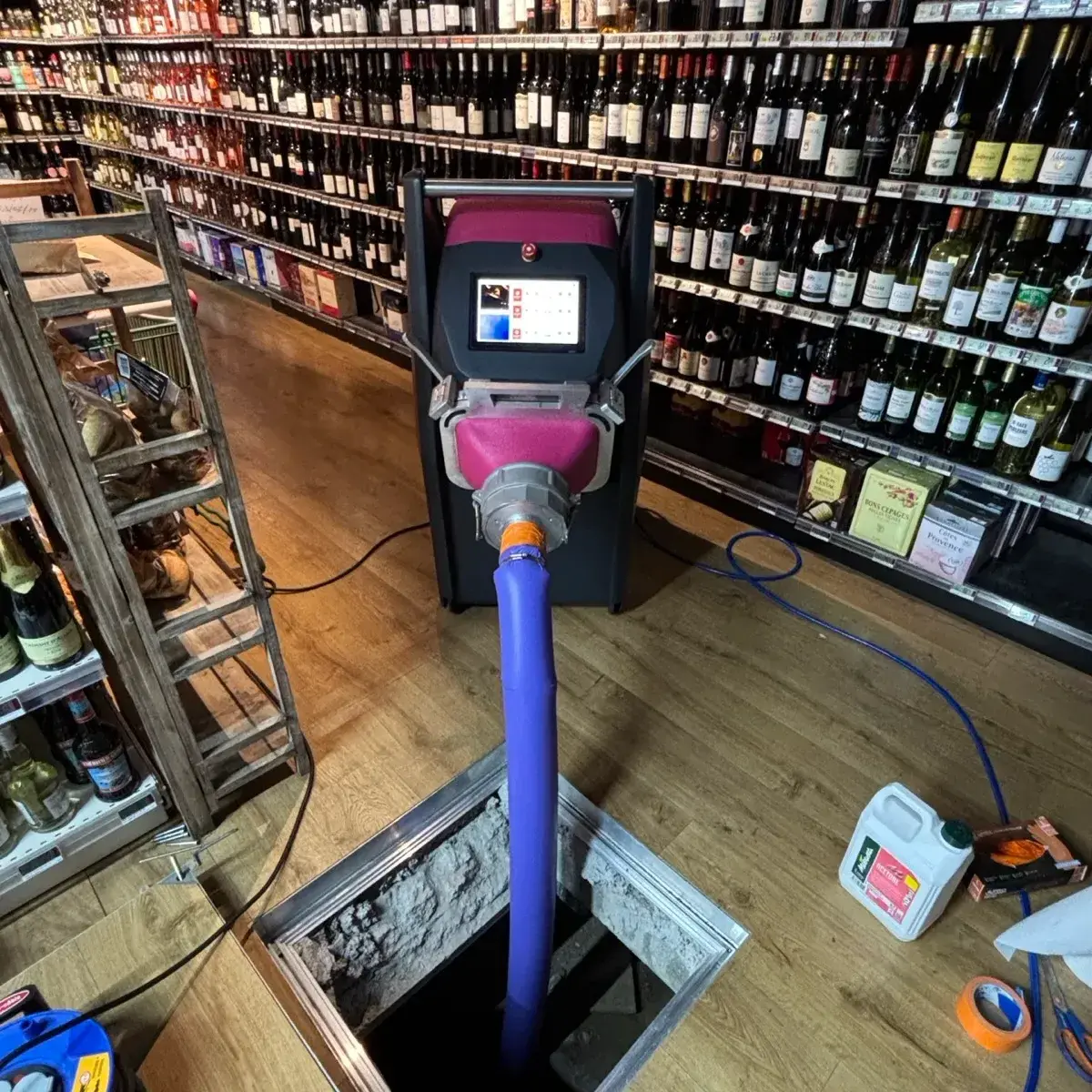

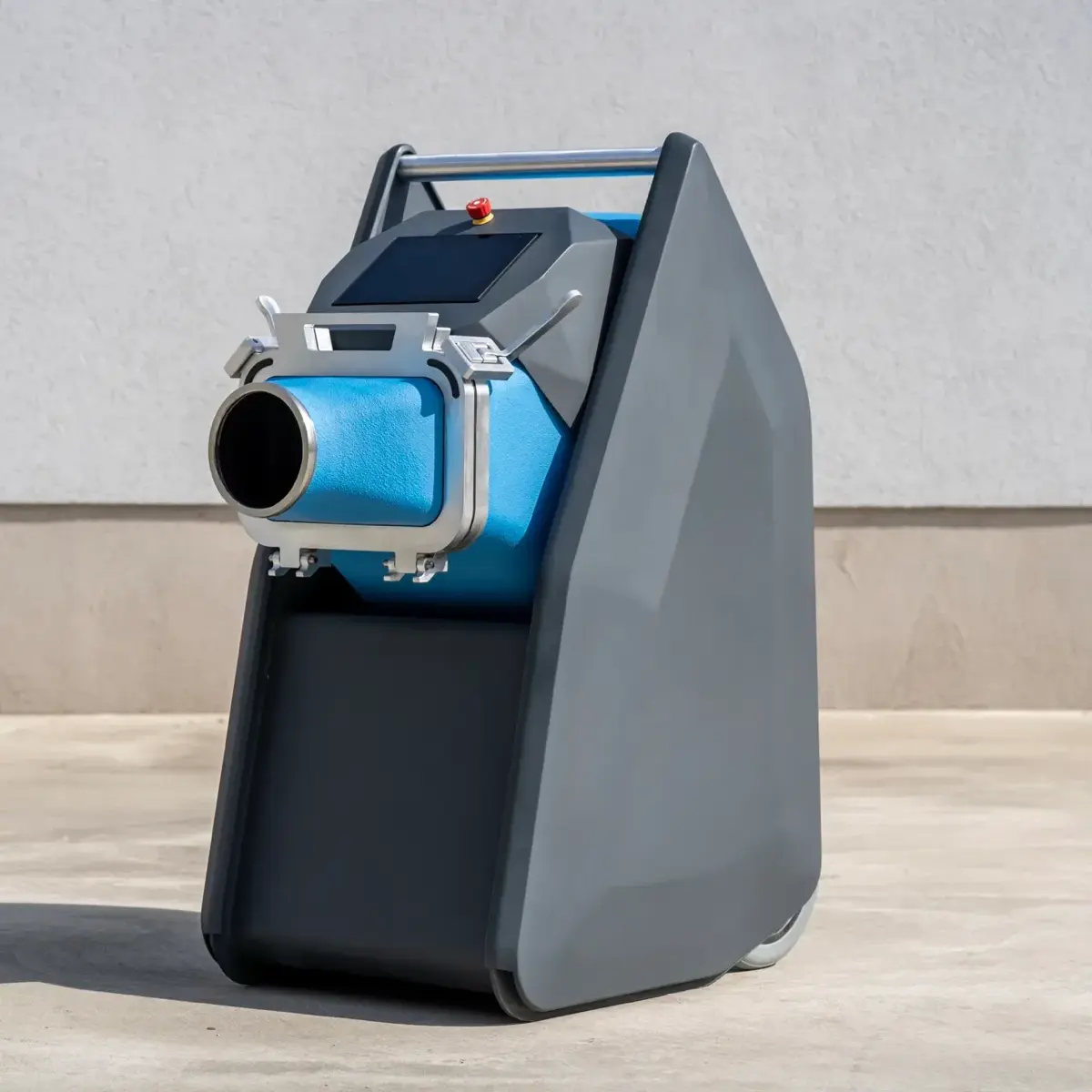

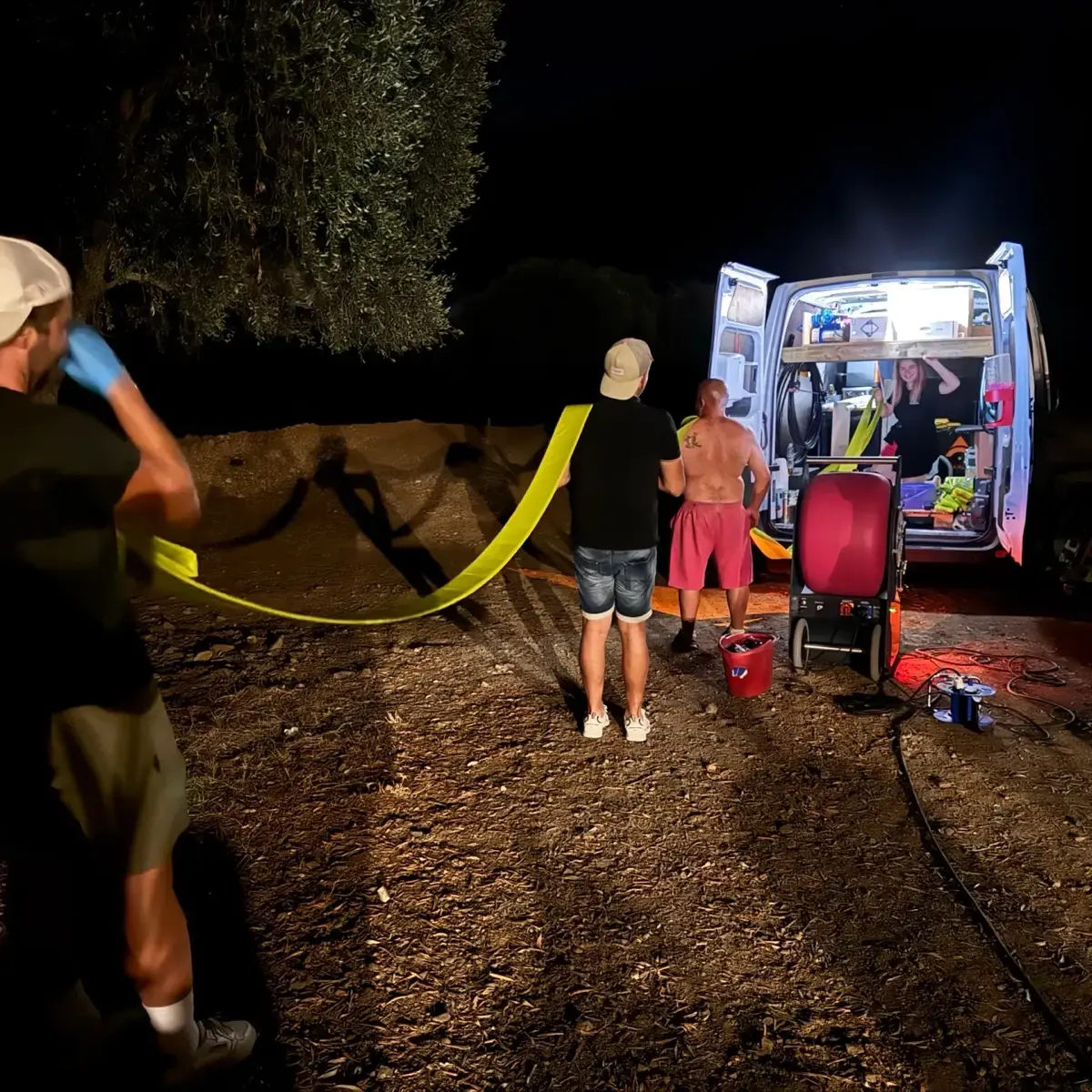

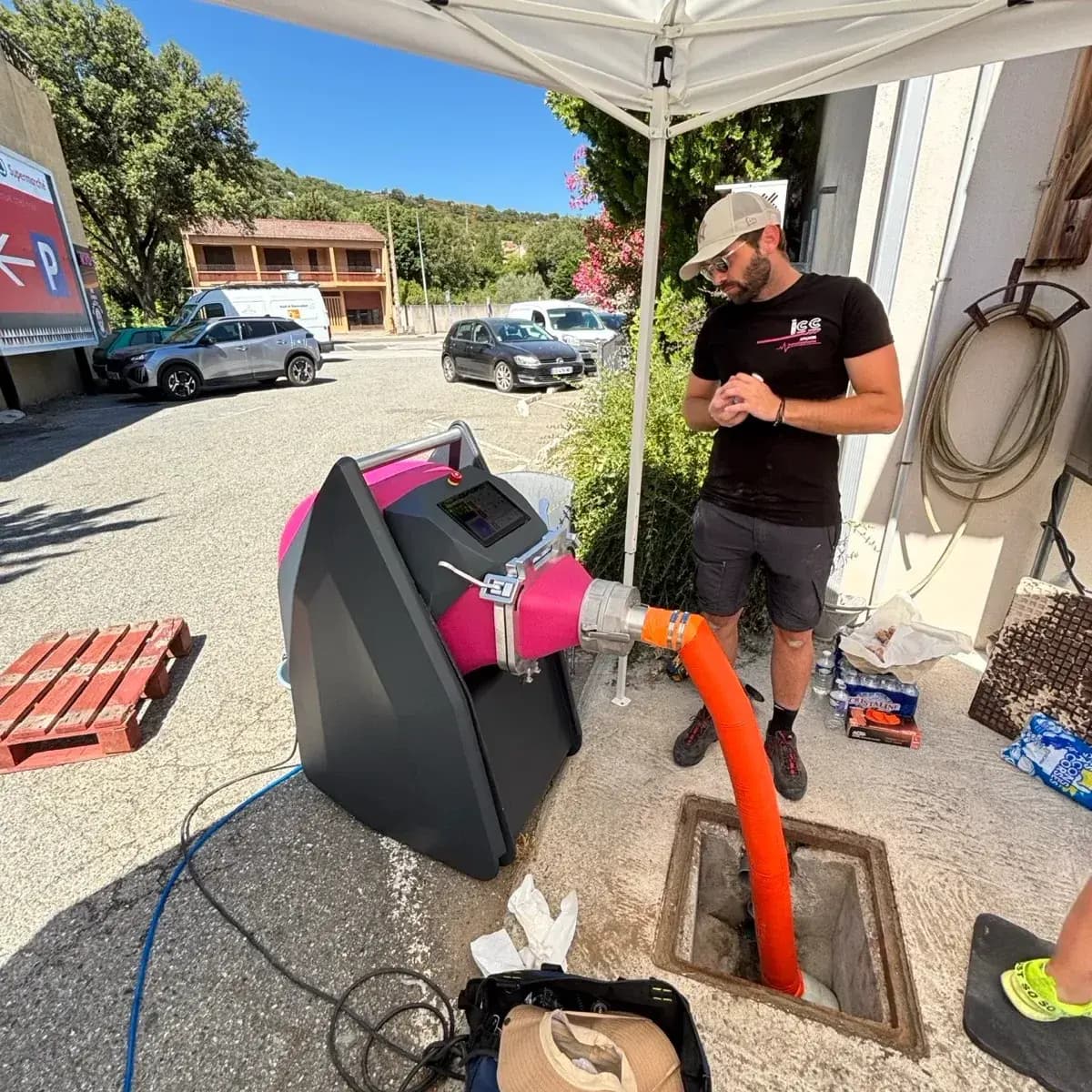

Gallery
From the moment you start using Sewerbot, it's ready to work for you. With its seamless integration with Ultrapreg, all you need to do is scan the QR code on the liner and let the Sewerbot take care of the rest!
Extensively Tested Compatibility
We've conducted thousands of rigorous tests with resins and liners from multiple vendors and producers worldwide. Our extensive testing program has mapped out which material combinations work effectively together, ensuring you achieve the best possible results with every compatible pairing. This comprehensive knowledge base means Sewerbot is optimized to deliver superior performance across a wide range of industry-standard materials, giving you confidence in your choice of suppliers.
It solves all type of pipe linings
01

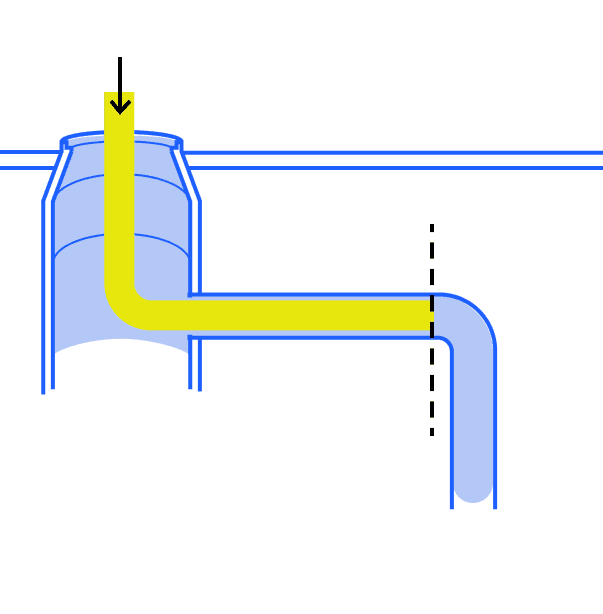

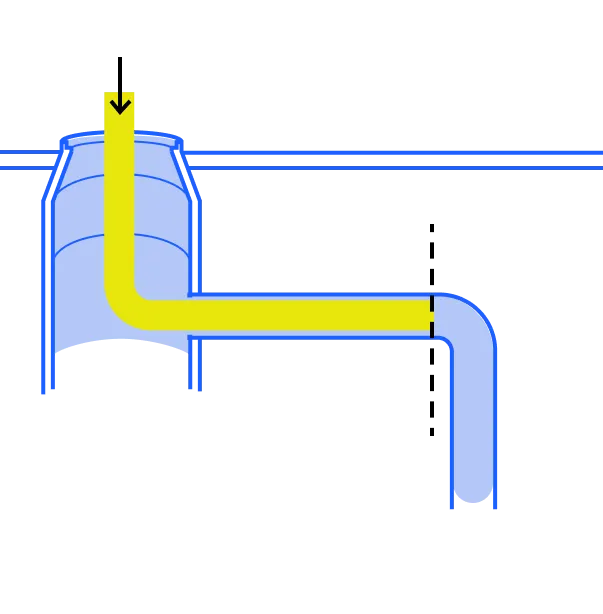

Single-Access Relining
Relines pipes with a closed or inaccessible far end using a single entry point. Ideal for challenging locations. Also known as: Blind Shot.
02

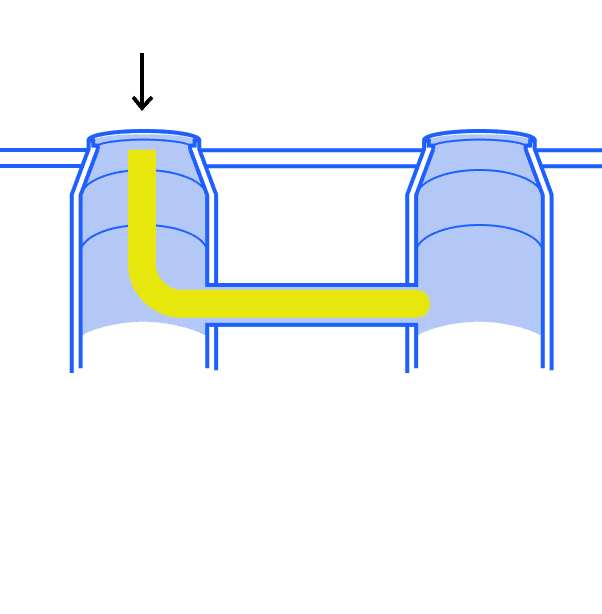

Dual-Access Relining
Relines the entire length between two access points, providing comprehensive rehabilitation for full sections. Also known as: Manhole-to-Manhole.
03

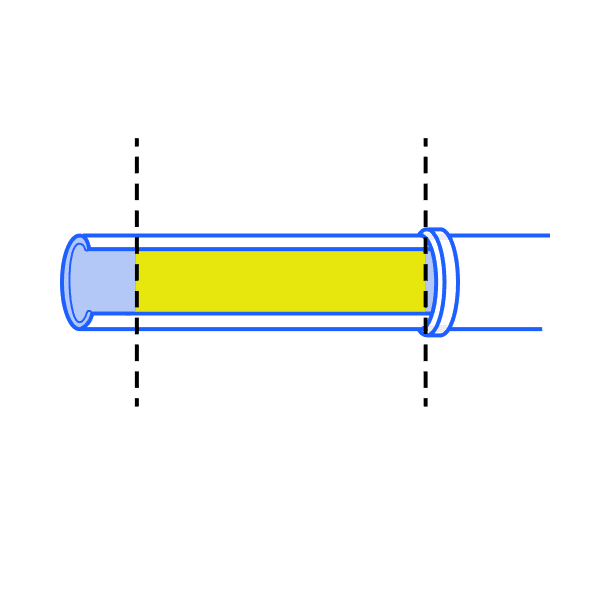

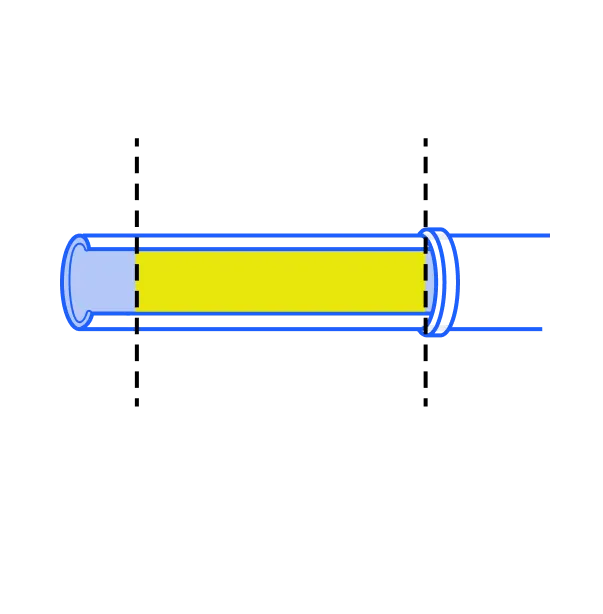

Spot Repair
Targets small, localized damage with short linings (up to 2 m), delivering fast, budget-friendly fixes across the full DN70-DN300 range (optimized for DN100-DN200). Also known as: Patch Repair.
coming soon!
04

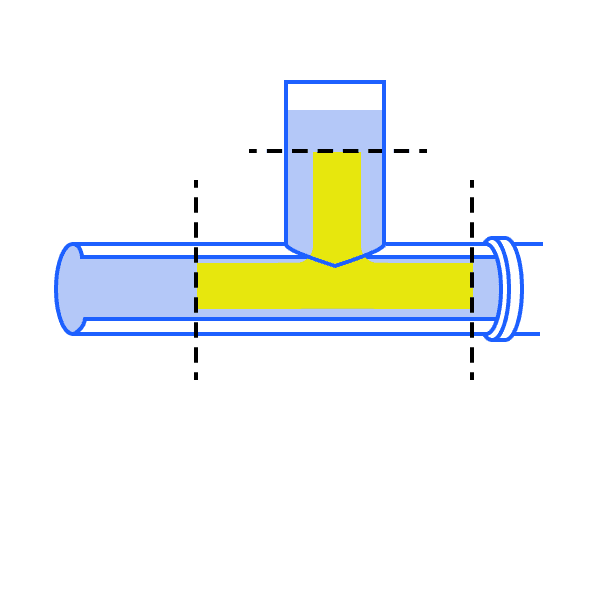

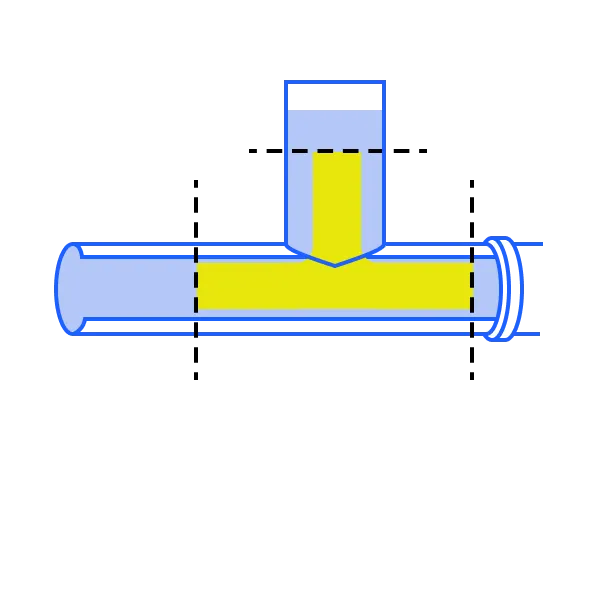

Junction Relining
Reinforces T-junctions and complex pipe configurations (optimized for DN100-DN200) to prevent leaks and root intrusion. Also known as: Top Hat or T-Connection.
Tech Specification
Weight and size
- Dimensions (L x W x H)
- 41.1 in x 25.1 in x 46.6 in
- Weight
- 198 lbs
Curing
- Curing speed
- 1.6 - 6.6 ft/min
- Inversion / Retraction speed
- 1.6 - 33 ft/min
- Water consumption
- 0.13 gal/min
- Air supply
- min. 5.3 CFM
- Maximum range
- 131 ft
- Rope holding power
- 441 lbs
Camera and UV Head
- Maxi Head power
- Over 1200 W adjustable power
- Maxi Head
- 90° bends >5"
- Mini Head power
- Over 600 W adjustable power
- Mini Head
- 90° bends >2.75"
- Wavelength
- 395nm
Software & Display
- Dual Camera feed
- 10.1 Touchscreen display
- Wifi
- Bluetooth
- Uploads everything to Cloud
Energy requirement
- Connected Load
- 1.8 kW
- AC input
- 230V & 110V
Cable
- Maximum range
- 131 ft
- Rope holding power
- 441 lbs
